Acrylic Foam Tape Manufacturer VHB TAPE Alternative for Industrial Applications
High-performance bonding solution for trims, emblems, and structural automotive components. Engineered to replace mechanical fasteners with a permanent, weather-resistant seal.
High-Bond Acrylic Foam Tape: The Ultimate Industrial Bonding Solution
Learn the structure, function, and industrial uses of double-sided acrylic foam tape.
Acrylic Foam Tape is an advanced, high-performance double-sided bonding tape engineered for demanding industrial applications. It typically consists of high-strength Adhesive Layers coated on both sides of a highly conformable Foam Core, protected by a durable Release Liner.
Suitable Applications
Acrylic Foam Tape
Ultimate Durability: Resistant to UV light, solvents, and temperature extremes (-40°C to 150°C).

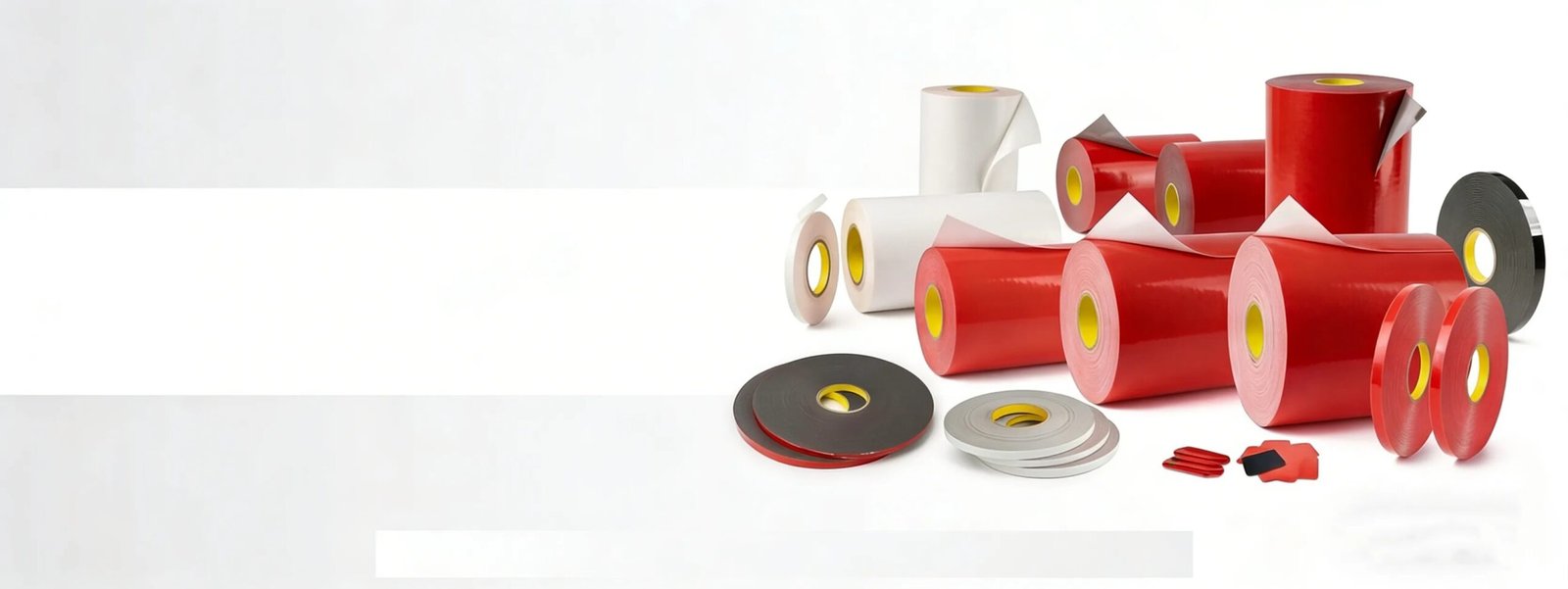

Acrylic Foam Tapes
Available in red PE liner, green liner, and white paper liner with multiple foam color options for different bonding applications.

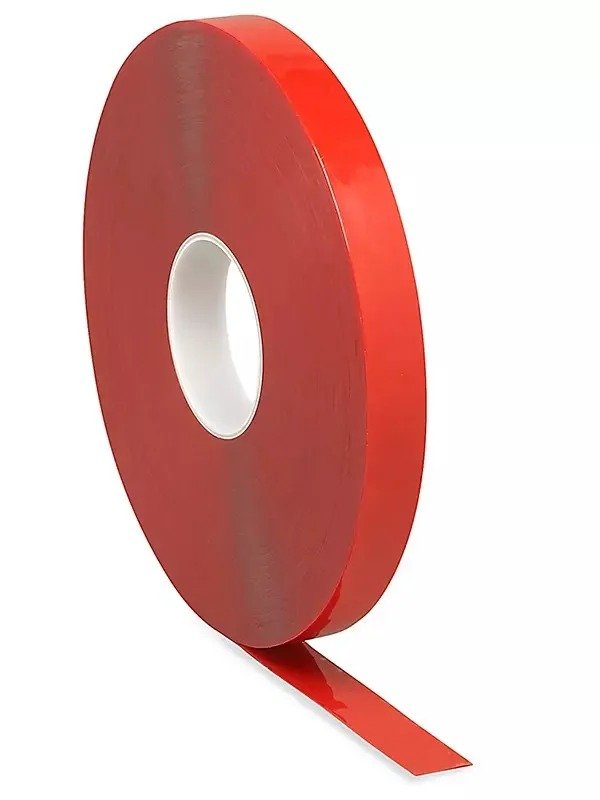

Red Liner Acrylic Foam Tape (Clear)
- Thickness: 0.8mm - 1.2mm
- Adhesive: Modified Acrylic
- Usage: Structural body parts
Red Liner Acrylic Foam Tape (Grey)
- Thickness: 1.1mm - 2.0mm
- Adhesive: Pure Acrylic
- Usage: Emblems, weatherseals

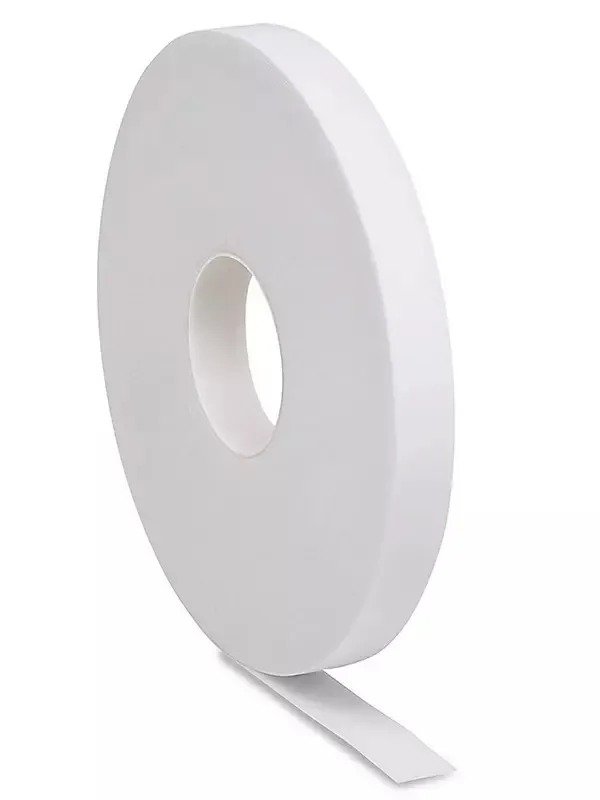

Red Liner Acrylic Foam Tape (White)
- Thickness: 0.5mm - 1.0mm
- Adhesive: High Tack Acrylic
- Usage: Dashboards, NVH reduction

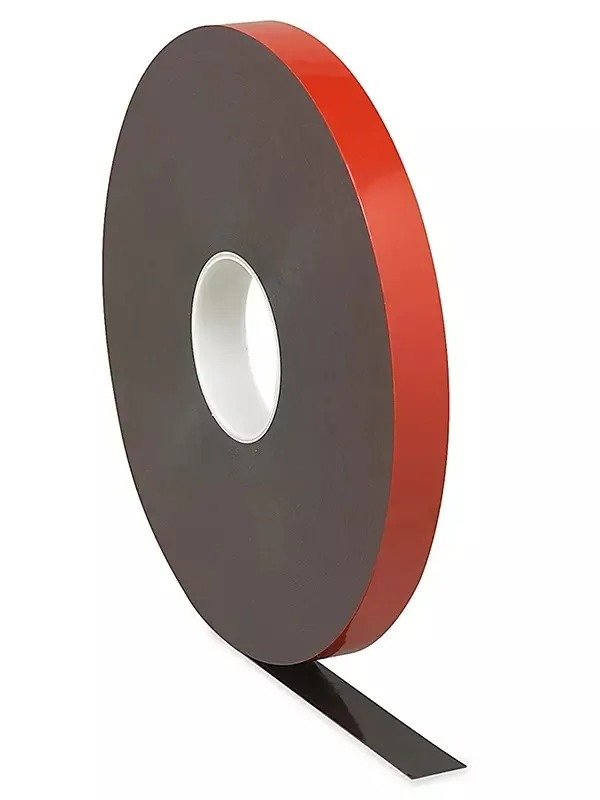

Red Liner Acrylic Foam Tape (Black)
- Thickness: 0.2mm - 0.4mm
- Adhesive: Conformal Acrylic
- Usage: Infotainment displays

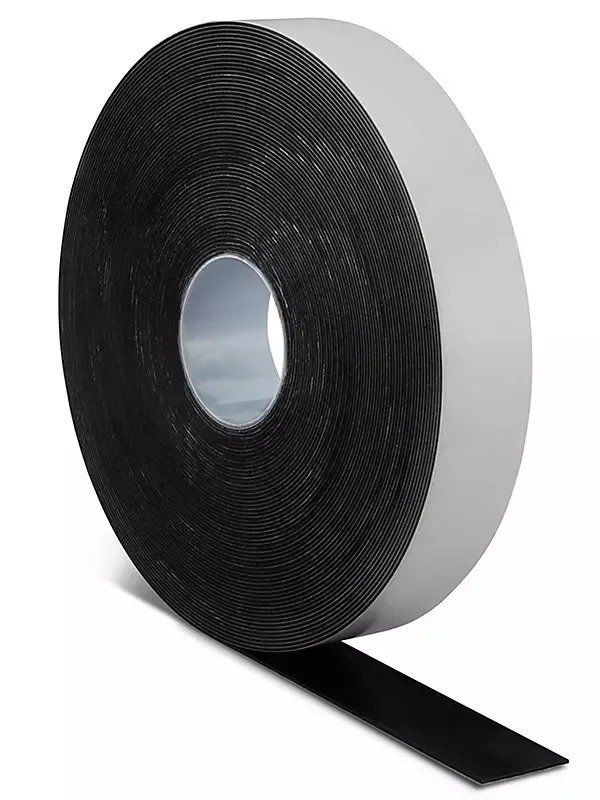

White Paper Liner Foam Tape (Black)
- Thickness: 0.5mm - 2.0mm
- Adhesive: Transparent Acrylic
- Usage: Glass bonding, transparent panels

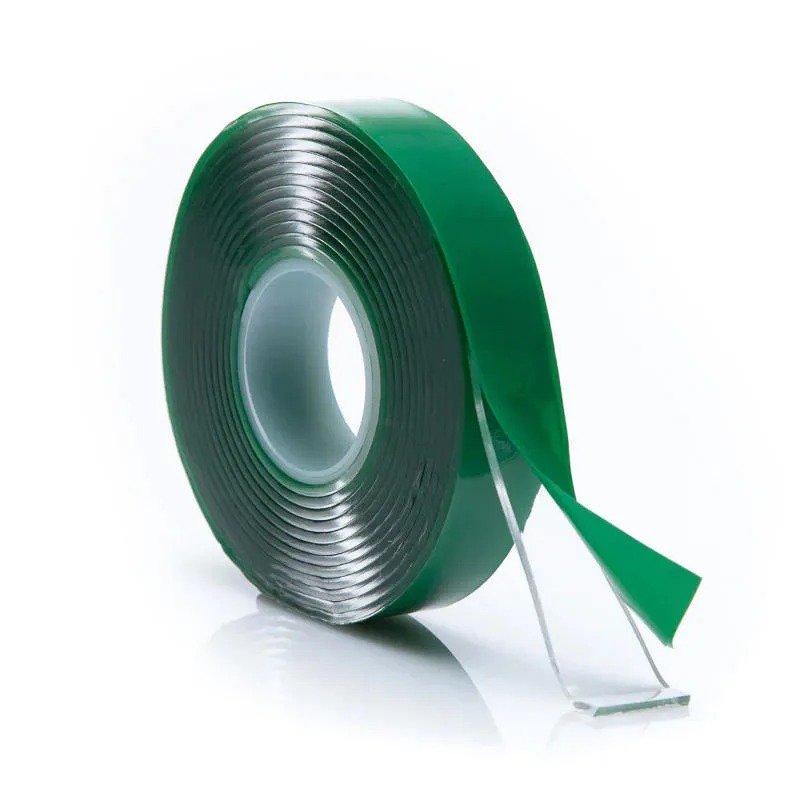

Green Liner Acrylic Foam Tape (Clear)
- Thickness: Custom Requirements
- Adhesive: Double-Sided Acrylic
- Usage: Precision assembly, mounting

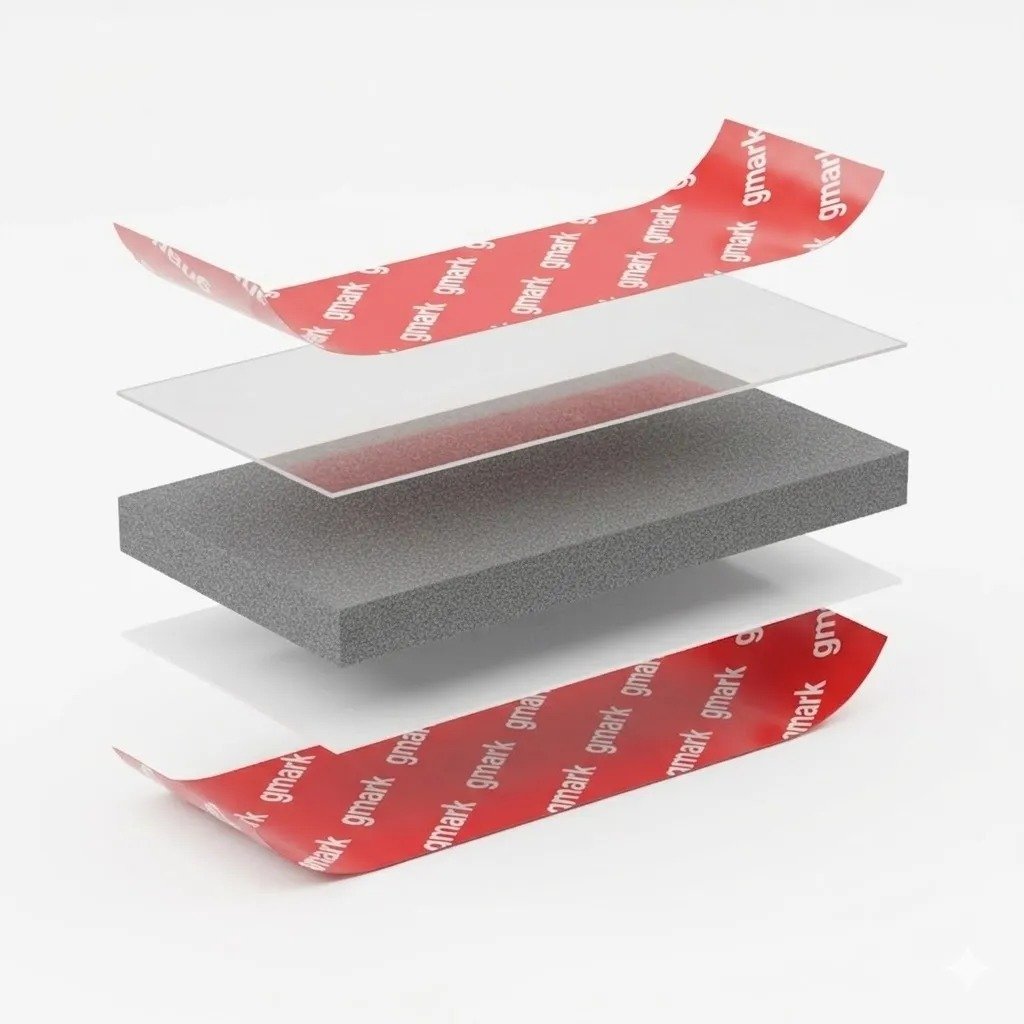

3 Key Layers of Acrylic Foam Tape You Should Know
Acrylic foam tape is specifically designed for strong bonding, stress distribution, vibration damping, and clean assembly on uneven surfaces. Understanding its multi-layer structure is essential for selecting the right industrial bonding solution.
Adhesive
High-Tack Acrylic Adhesive. Engineered for immediate grab and permanent aging resistance. It creates an indestructible bond even on low-surface energy substrates.
Foam Core
Viscoelastic Foam Core. Acts as a shock absorber. This stress-distributing core compensates for thermal expansion and dampens vibrations, preventing bond failure in extreme environments.
Release Liner
Precision Release Liner. Available in PE film or siliconized paper. Designed for smooth peeling and high-speed die-cutting, ensuring zero downtime on your assembly line.
Illustration Guidance
Placeholder for a layered acrylic foam tape diagram showing: top release liner, upper adhesive layer, acrylic foam core, lower adhesive layer, and bottom application surface. Note: Use a clean exploded structure illustration with a red release liner and dark foam core.
Acrylic Foam Tape Applications Across Industries
Reliable bonding solutions for automotive, electronics, construction, and industrial assembly.

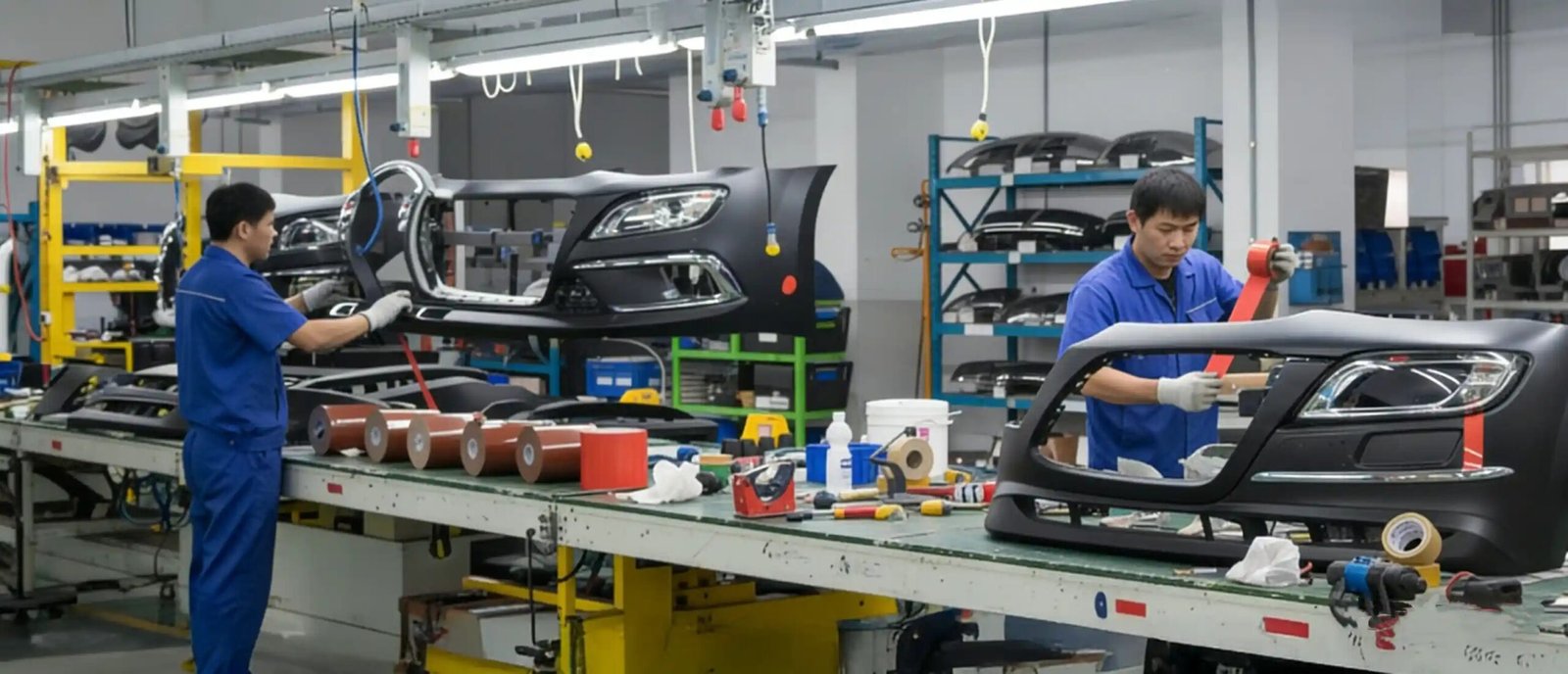

Automotive
Trim & emblem mounting, body side molding, exterior parts
Signage & Display
Sign mounting, advertising panels, decorative bonding
Electronics
Display bonding, component fixing, insulation
Construction
Glass bonding, curtain wall panels, window sealing

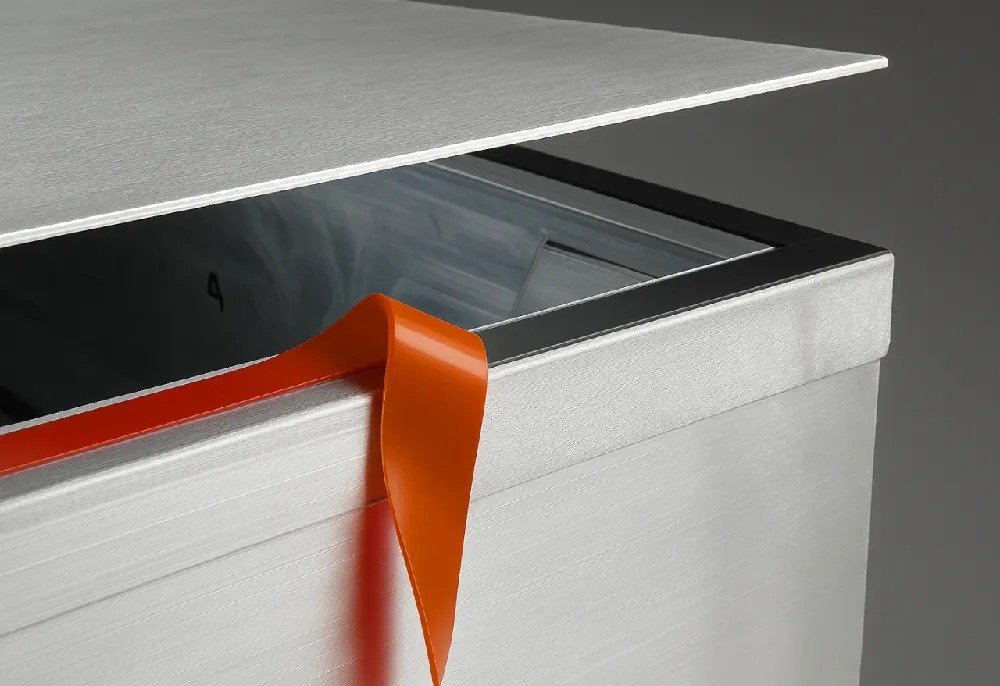

Appliance
Panel bonding, vibration damping, sealing

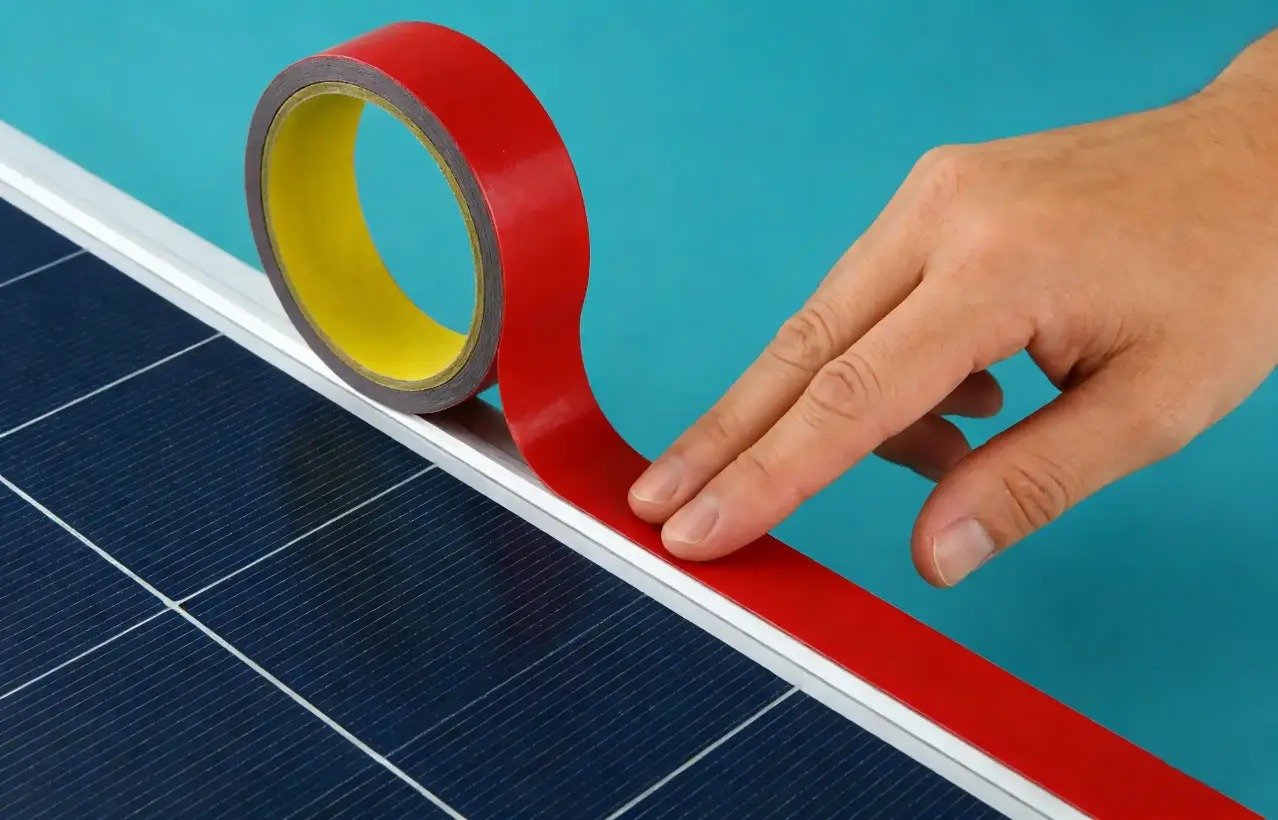

Solar Energy
Frame sealing, module bonding, weather protection

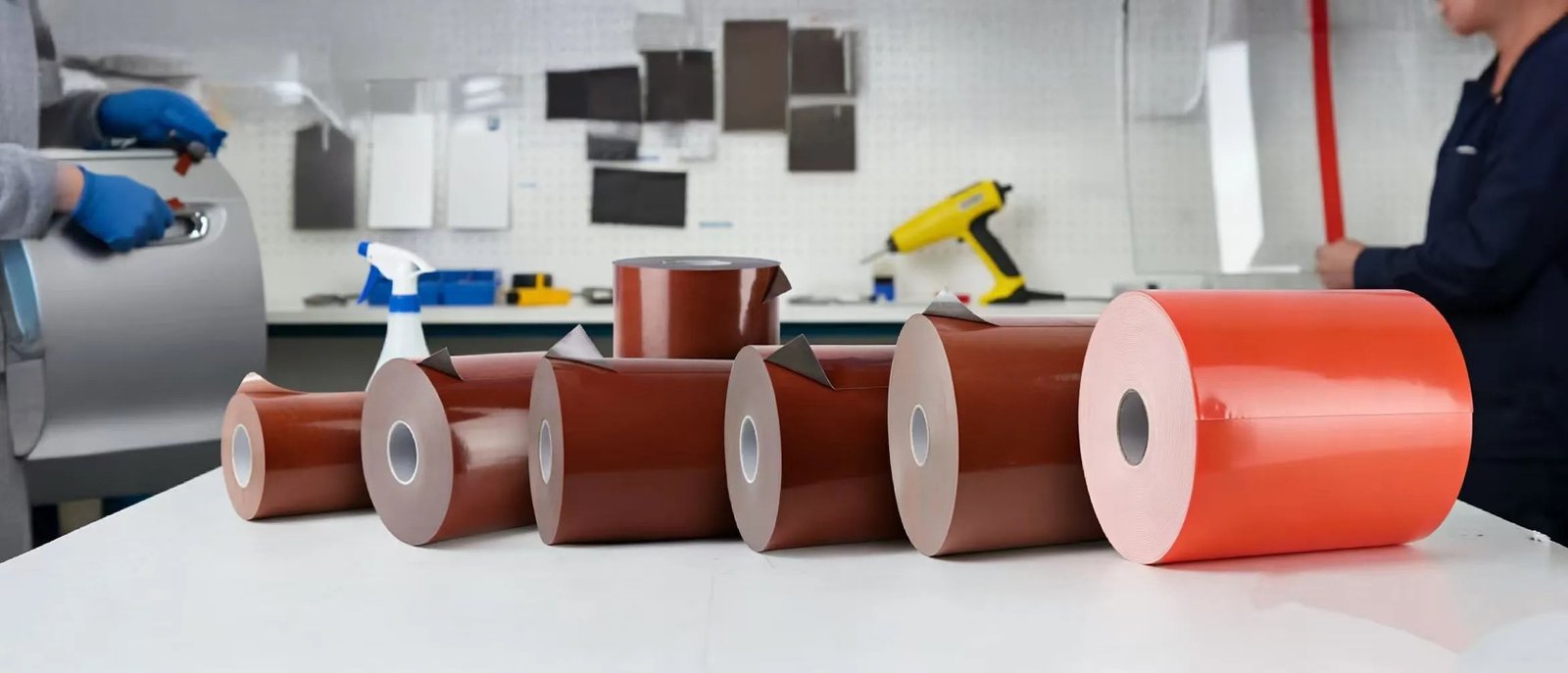

Best acrylic foam tape thickness for automotive?
Compare thickness, adhesive type, and application scenarios to select the most suitable acrylic foam tape for your project.
| Thickness Range | Recommended Adhesive | Typical Applications | Key Advantages |
|---|---|---|---|
| 0.5 – 1.0 mm | Conformal Acrylic | Electronics, display bonding, trims | Thin profile, high precision, clean appearance |
| 1.0 – 2.0 mm | Modified Acrylic | Automotive parts, appliance panels, signage | Balanced bonding strength and flexibility |
| 2.0 – 3.0 mm | High-Performance Acrylic | Exterior automotive, construction, uneven surfaces | Strong gap filling, vibration damping, weather resistance |
Engineering Logic Behind Adhesive Selection
Selecting the optimal double-sided foam tape requires understanding the physical demands of your industrial bonding application. Thicker foam (2.0 – 3.0 mm) effectively compensates for surface irregularities, offering superior gap filling and vibration damping properties under dynamic loads.Conversely, thinner foam is engineered for smooth surfaces where aesthetics and a flush finish are paramount. Ultimately, foam thickness dictates stress distribution across the bond line, directly impacting the long-term durability and reliability of the joint.
Substrate Compatibility Guide
Match your material surface energy with the correct acrylic formulation.
Metals & Glass
Suitable for all thicknesses with standard acrylic adhesive. Provides excellent shear strength.
Plastics (ABS, PVC, PET)
Modified acrylic recommended to ensure high initial tack and long-term adhesion to medium surface energy materials.
LSE Materials (PP, PE)
High-performance acrylic or surface primer required to achieve structural bonds on low surface energy plastics.
Why Choose Acrylic Foam Tape?
Superior viscoelastic properties make it the ultimate choice for dynamic automotive environments.
High Bonding Strength
Builds immediate handling strength and cures to form a permanent, indestructible bond with automotive paints and plastics.
Vibration Resistance
Viscoelastic foam core absorbs shock and dissipates stress, preventing component failure under constant road vibration.
UV & Weather Resistance
Closed-cell structure blocks moisture. Highly resistant to UV light, extreme temperatures, and automotive chemicals.
Clean Appearance
Eliminates the need for drilling, screws, or liquid adhesives, maintaining smooth, uninterrupted automotive surfaces.
Long-term Durability
Engineered to match the lifecycle of the vehicle, maintaining adhesion strength through years of thermal expansion and contraction.
Manufacturing & Engineering Capabilities
Precision Die Cutting
Custom shapes and sizes specifically cut to match your automotive emblems and trim profiles.
Custom Slitting
Narrow roll slitting down to 3mm width for tight automotive weatherseals and wire harnesses.
Laminating
Applying custom pull-tabs or extended liners to facilitate rapid assembly line production.
OEM Support
Full private label and contract manufacturing services for Tier 1 and Tier 2 auto suppliers.
Frequently Asked Questions
Yes. In many applications such as attaching body side moldings, emblems, and interior trim panels, acrylic foam tape completely replaces mechanical fasteners. It eliminates drilling, prevents rust at puncture points, and distributes stress evenly across the entire bonded area.
Absolutely. The closed-cell acrylic foam structure provides a water-tight seal and is highly resistant to UV radiation, extreme temperature fluctuations (-40°C to 120°C), moisture, and common automotive fluids like car wash chemicals and waxes.
For exterior car trims and moldings, a thickness of 0.8mm to 1.2mm is standard. This thickness provides enough foam mass to absorb thermal expansion differences between the plastic trim and the metal car body while maintaining a sleek, flush appearance.
