150°C High-Temp Resistant

High-Performance Transfer Tape Solutions

Engineered for precision die-cutting and extreme industrial environments. Delivering superior shear strength and thermal stability for demanding electronic and automotive assembly.

Thickness

0.05mm - 0.13mm

Thermal Stability

Up to 150°C

Standard

3M 467MP/468MP Equivalent

Request Technical Data Sheet

3D exploded view of transfer tape layers

Engineering the Perfect Bond: Layer by Layer

A pure adhesive system stripped of unnecessary carriers, designed for maximum conformability and minimum profile.

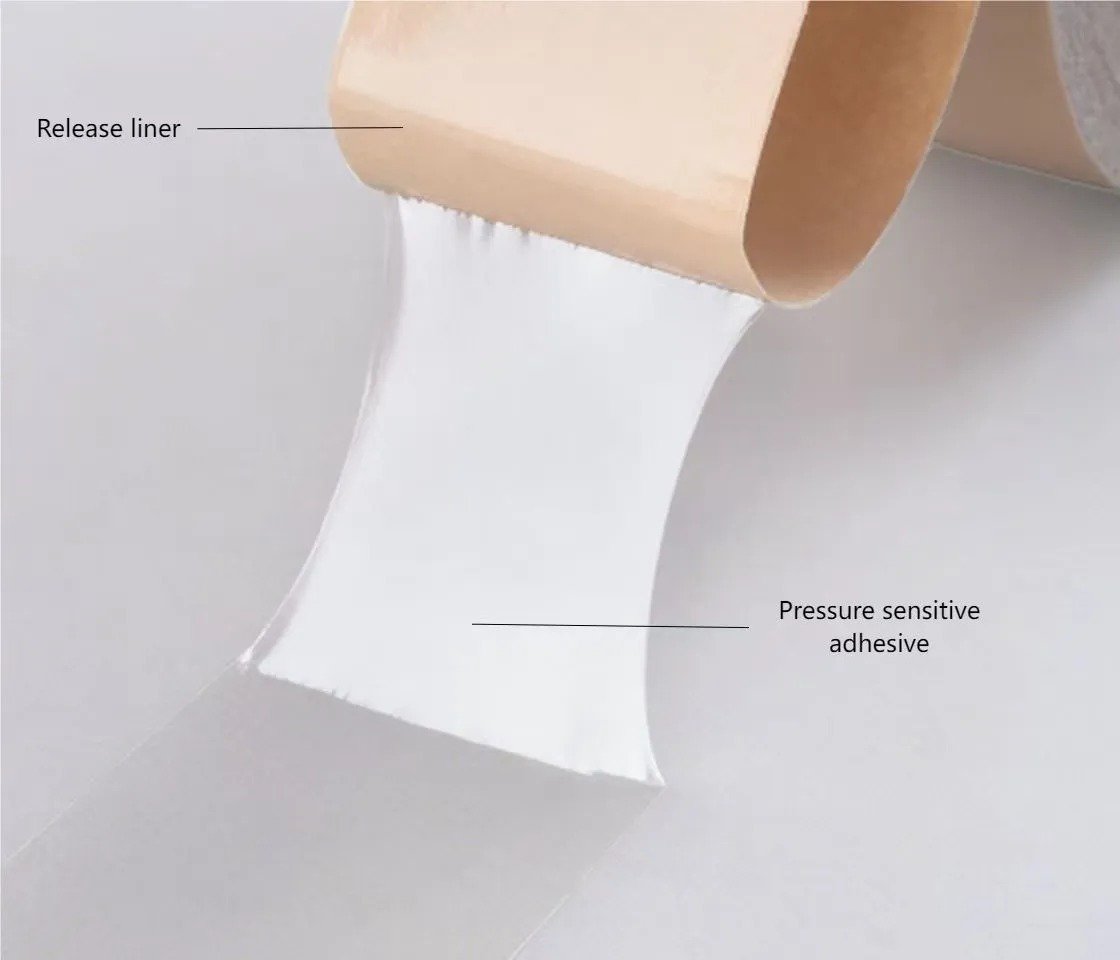

Primary Liner

Choice of Moisture-Stable PCK (Polycoated Kraft) or Easy-Release Glassine paper. Engineered for high-speed automated application and dimensional stability during processing.

Pure Adhesive Film

Solvent-free, high-performance acrylic adhesive. No carrier (PET/Tissue) means maximum conformability to irregular surfaces, superior gap filling, and thinner overall profiles.

Optional Secondary Liner

Available upon request for complex die-cutting, kiss-cutting requirements, or selective part placement in automated assembly lines.

Stop Compromising on Bonding Integrity

Ordinary tapes fail when pushed to the limit. Our engineered solutions eliminate common assembly bottlenecks.

Optimized Die-Cutting Precision

The Challenge:Traditional soft adhesives often suffer from "Adhesive Oozing" during the punching process, which not only contaminates component edges but also leads to frequent downtime for blade cleaning, severely impacting your production yield.

The Professional Solution: Our transfer tape features a high-cohesion "hard" adhesive formula specifically engineered for precision die-cutting. Whether using high-speed rotary or flat-bed die-cutting, it delivers clean, crisp edges and reduces tool residue by over 45%. This ensures continuous operation of your production line with zero unscheduled downtime.

Engineered for Continuous 150°C Environments

The Challenge: In applications like automotive consoles, industrial control panels, or electronic component assembly, ordinary tapes frequently experience Cohesive Failure when exposed to heat, resulting in bubbling, oozing, or permanent delamination.

The Professional Solution: Our core acrylic chemistry is highly cross-linked and optimized for sustained high-temperature environments. This series maintains structural integrity under continuous 150°C (302°F) exposure and withstands rigorous thermal cycling. It ensures stable shear strength in heat-intensive applications

Low Initial Tack

The Challenge: Low-tack adhesives require a long "Dwell Time" or secondary pressure to reach their rated bond strength. This creates a significant bottleneck in high-volume automated assembly lines, slowing down total throughput.

The Professional Solution: Our transfer tape formula is engineered for superior surface wetting. Even on Low Surface Energy (LSE) plastics or micro-curved surfaces, it achieves high-strength micro-bonding the moment it makes contact. This instant "destructive" bond strength eliminates the need for tedious dwell periods, allowing seamless integration with high-speed automated placement equipment and significantly shortening cycle times.

Technical Performance Data Sheet

Verified parameters for critical engineering calculations.

Property	Value (Metric)	Testing Method
Adhesive Type	High-Tack Pure Acrylic	---
Peel Adhesion (Stainless Steel)	≥ 18 N/25mm	ASTM D-3330
Shear Strength (Room Temp)	10,000+ Minutes	ASTM D-3654
Short-Term Temp Resistance	150°C (302°F)	4 Hours
Long-Term Temp Resistance	120°C (248°F)	7 Days
Shelf Life	24 Months	Stored @ 21°C, 50% RH

* Data represents typical values and should not be used for specification purposes without independent verification.

Why Engineers Choose Our Transfer Tape

Delivering unmatched reliability where standard adhesives fail.

Ultra-Thin Profile

Maximizes space in compact electronic designs without sacrificing shear or peel bond strength.

Solder Resistance

Maintains structural integrity and prevents outgassing during lead-free SMD reflow processes.

Chemical & UV Stability

Resistant to industrial solvents, fuels, and long-term sunlight exposure—perfect for outdoor use.

Superior Die-Cutting

Optimized cohesive strength for rotary and flat-bed die-cutting with minimal adhesive edge buildup.

Multi-Substrate Bonding

Excellent adhesion to High Surface Energy (HSE) plastics, metals, and even powder-coated surfaces.

Long-Term Aging

Formulated to prevent yellowing or embrittlement over the 10+ year lifecycle of industrial equipment.

One Tape, Infinite Possibilities

Engineered to meet the stringent demands of global manufacturing sectors.

Ideal for FPC (Flexible Printed Circuit) bonding, heat sink attachment, and LCD screen mounting where zero-profile is critical.

Reliable sensor mounting, dashboard trims, and interior emblem attachment enduring high cabin temperatures.

Perfect for graphic overlays, control panels, and membrane switch assembly requiring clean die-cuts.

Bonding wearable diagnostic devices and equipment housings where low-profile and high-reliability are critical.

Your Partner in Precision Converting

We don't just sell master rolls; we provide ready-to-assemble solutions tailored to your production line.

Precision Slitting

Custom widths sliced to exact tolerances, ranging from ultra-narrow 2mm strips to full 1200mm master rolls.
Custom Die-Cutting

Deliveries available in individual sheets or continuous rolls, kiss-cut to perfectly match your CAD drawings.
Multi-Layer Lamination

Advanced composite bonding combining transfer tape with foams, foils, or fabrics for unique material requirements.

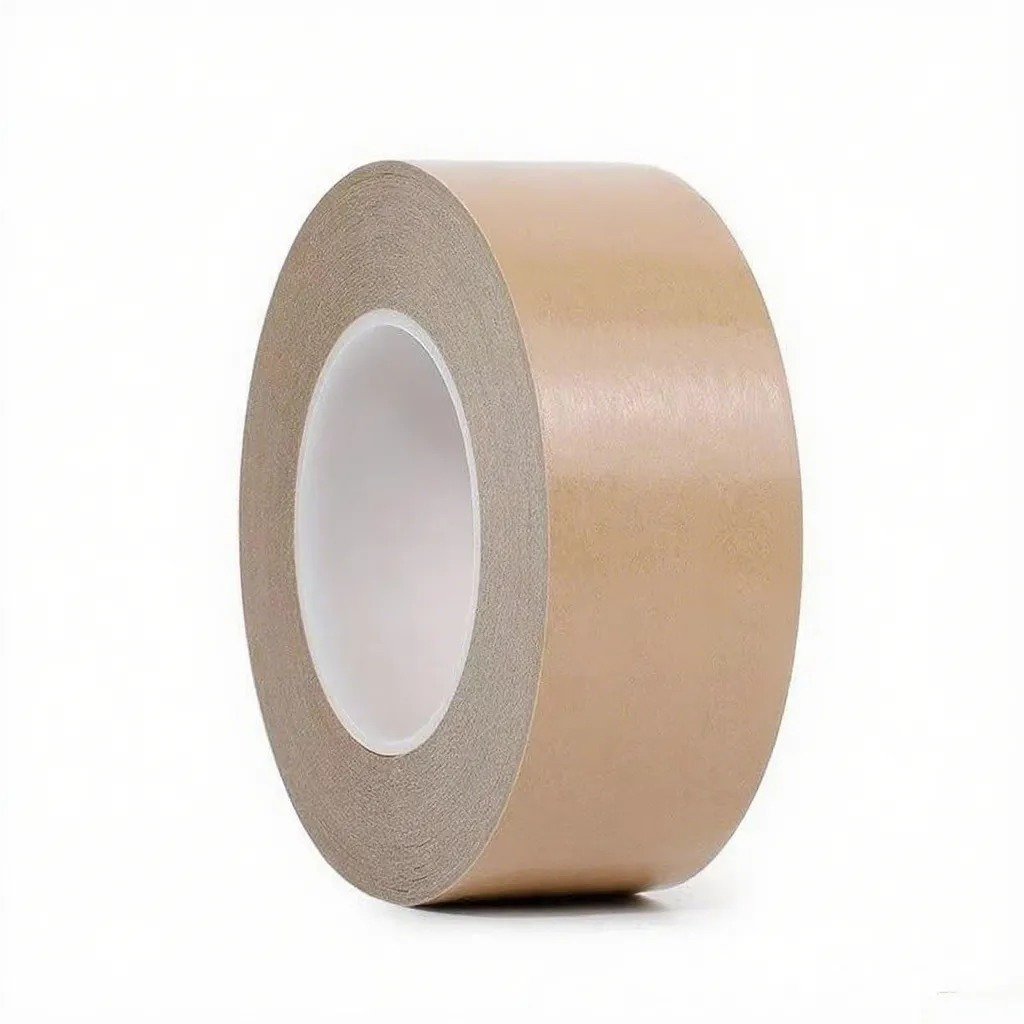

Tray of precision die-cut adhesive gaskets

Certified Quality You Can Export

Every batch is QC-tested in our ISO 9001 certified facility to ensure consistent bonding performance globally.

Expert Insights: Transfer Tape FAQ

Technical answers for engineering and procurement professionals.

How do I prepare the surface for maximum bond?

Ensure the surface is completely dry and free of oils, dust, or mold release agents. We recommend a 50:50 Isopropyl Alcohol (IPA) and water wipe for most industrial substrates. Allow the surface to dry completely before application.

Is this a direct equivalent to 3M 467MP or 468MP?

Yes, our transfer tape series is engineered to match the high-performance acrylic properties of the 200MP adhesive family. It offers comparable shear strength, temperature resistance, and die-cutting performance, providing a highly cost-effective alternative for industrial nameplates and graphic overlays.

What is the ideal storage condition to maintain shelf life?

To maintain maximum shelf life (typically 24 months from the date of manufacture), store rolls in their original packaging, away from direct sunlight, at a constant temperature of 21°C (70°F) and 50% relative humidity.

What is the maximum width available for master rolls?

We manufacture and stock master jumbo rolls up to 1200mm (approx. 47.2 inches) in width. These can be custom slit down to your specific width requirements, starting from as narrow as 2mm.

Can this tape bond securely to powder-coated surfaces?

Yes. While powder coats are typically Low Surface Energy (LSE) materials, our modified acrylic formulation is specifically designed to wet out effectively, creating a strong, permanent bond on difficult-to-stick surfaces including powder-coated metals and LSE plastics.

Ready to Upgrade Your Assembly Line?

Request a technical data sheet, get a custom quote, or ask for free A4 sample sheets for your internal testing.
